EPDC-10

控制模式	脉冲+方向/正负脉冲
输入电压	24-75 [VDC]
输出电流	最大10 [A]
控制信号	5-24 [VDC]
数字量输入	3
数字量输出	2
编码器反馈	有
运行温度	0-40 [°C]
IP等级	IP20
最大可选细分	25600
适配电机	20-86闭环步进电机
温度范围	20%RH-90%RH，无结露
认证	CE RoHS
重量	0.30 [kg]
相数	2 [相]

机械尺寸

Download area for EPDC-10

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

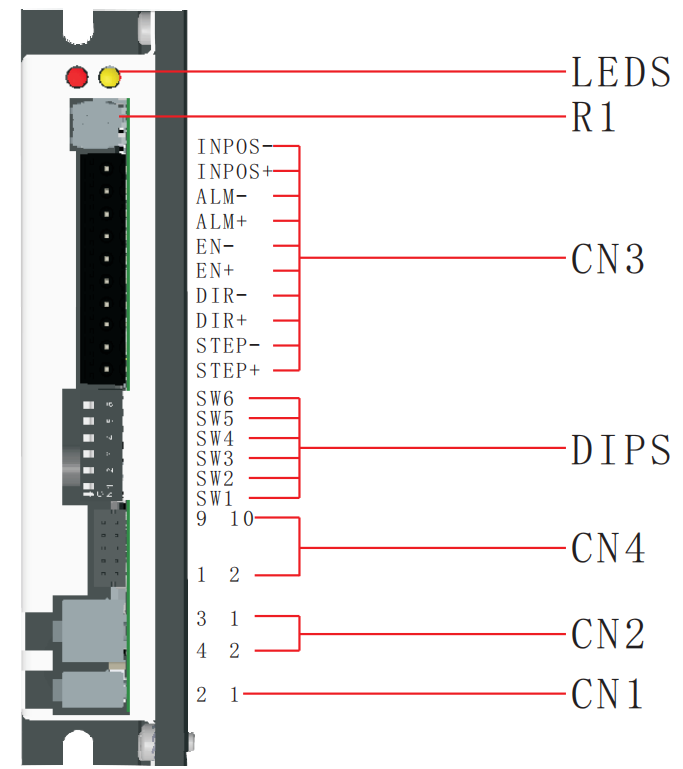

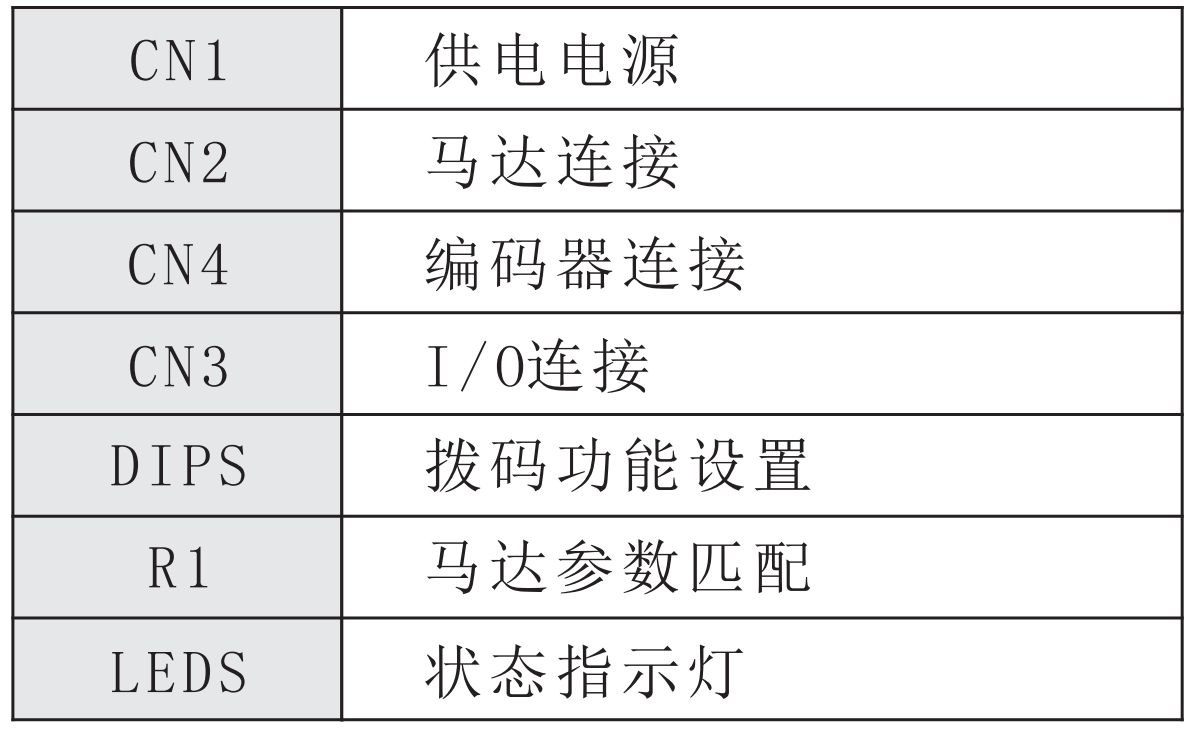

连接与运行

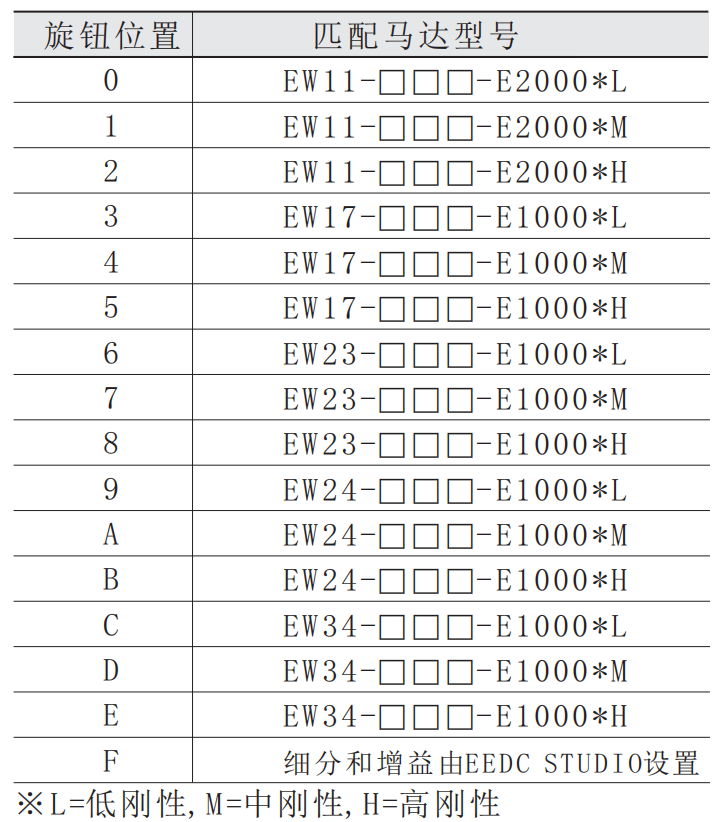

马达匹配

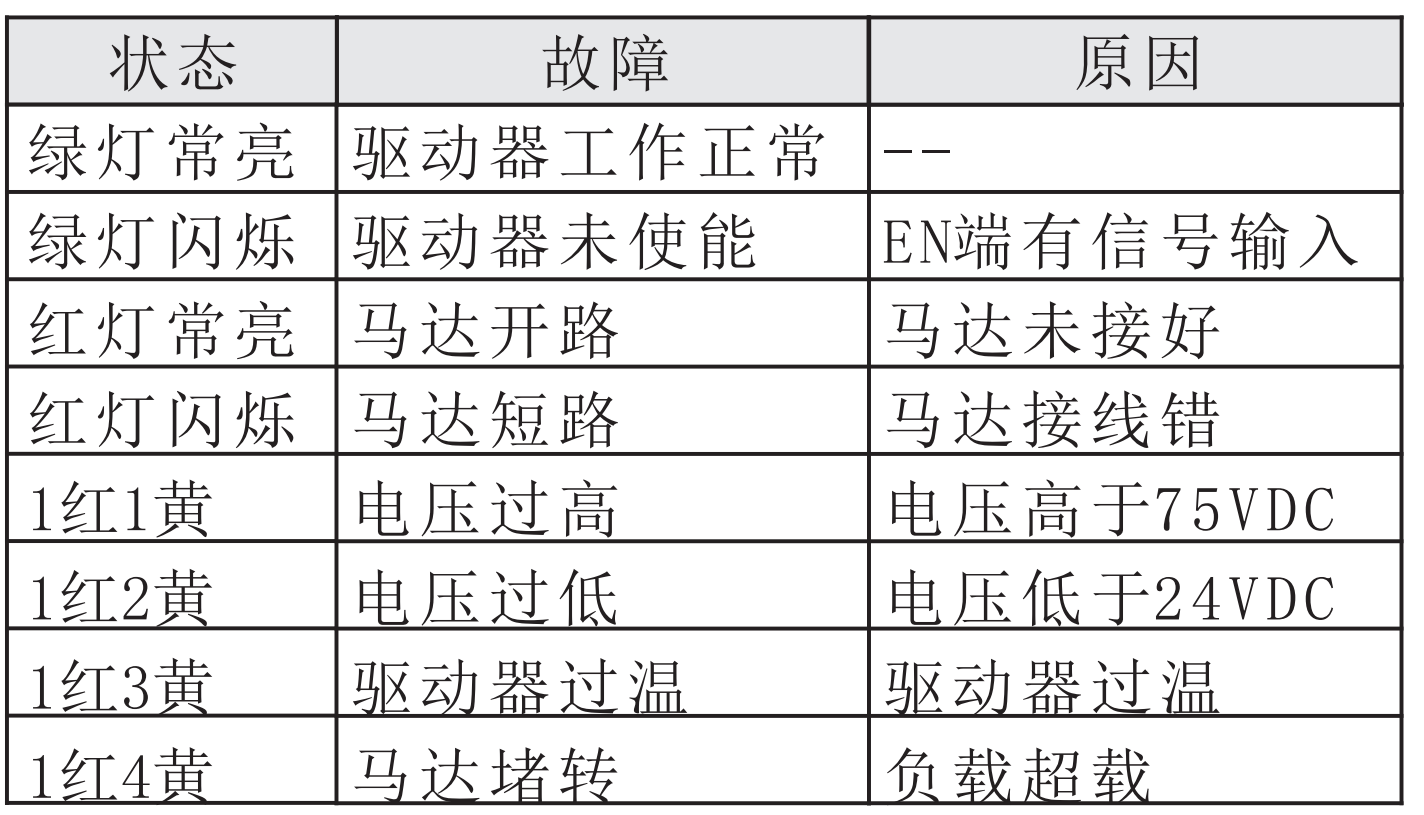

状态指示灯
