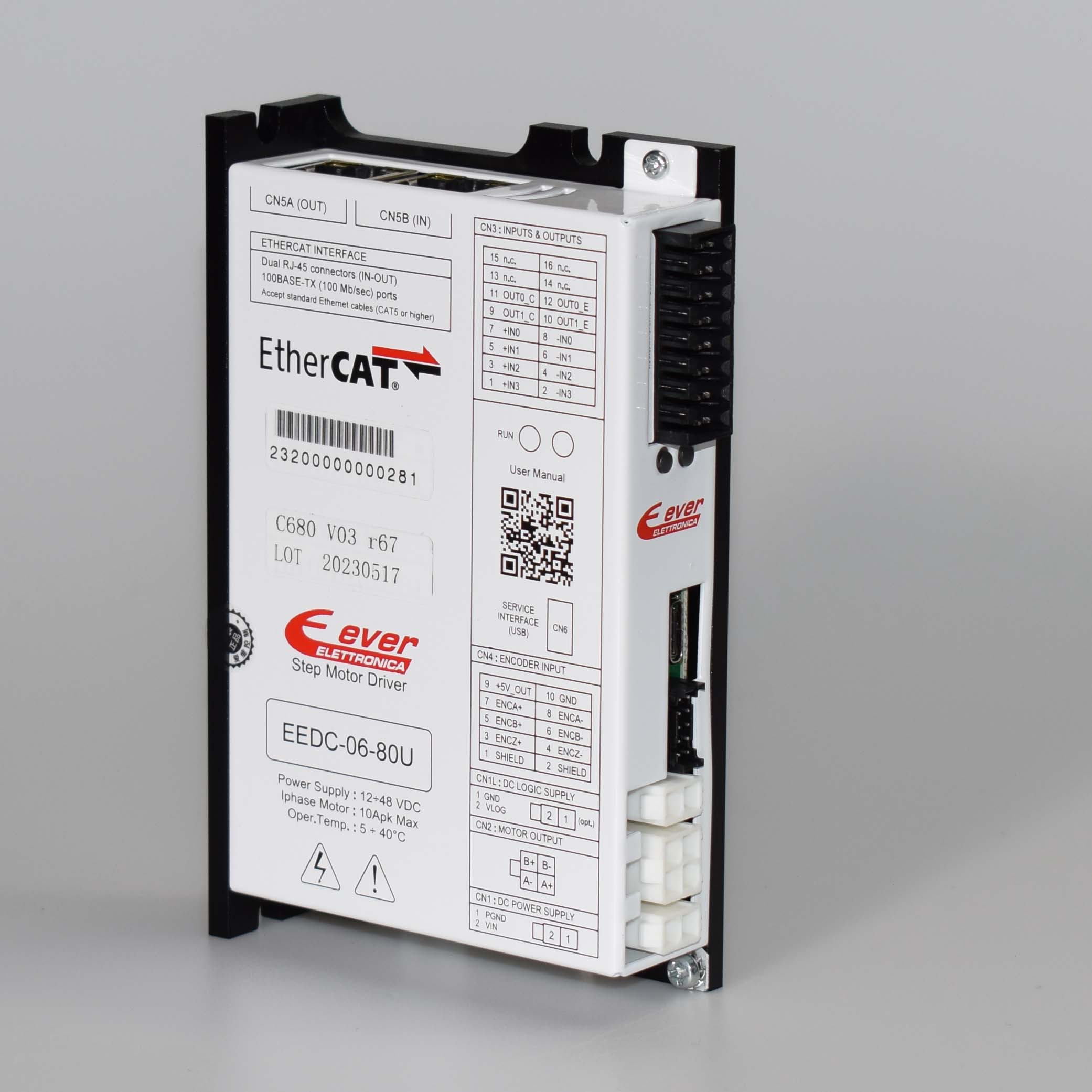

EEDC-06-80U

控制模式	Ethercat
电源电压	12-48 [VDC]
输出电流	最大6 [A]
调试接口	Type_C
数字输入	4 [光电耦合]
数字输出	2 [光电耦合]
编码器反馈	有
适配电机	20-86尺寸通用
环境温度	5-40 [℃]
环境湿度	5%RH-85%RH，无结露
IP等级	IP20
产品尺寸	121 x 74 x26（无连接器）[mm]
保护	过电流、过电压、过热、短路、丢步
认证	CE，RoHS，UL
重量	0.30 [kg]
相数	2 [相]

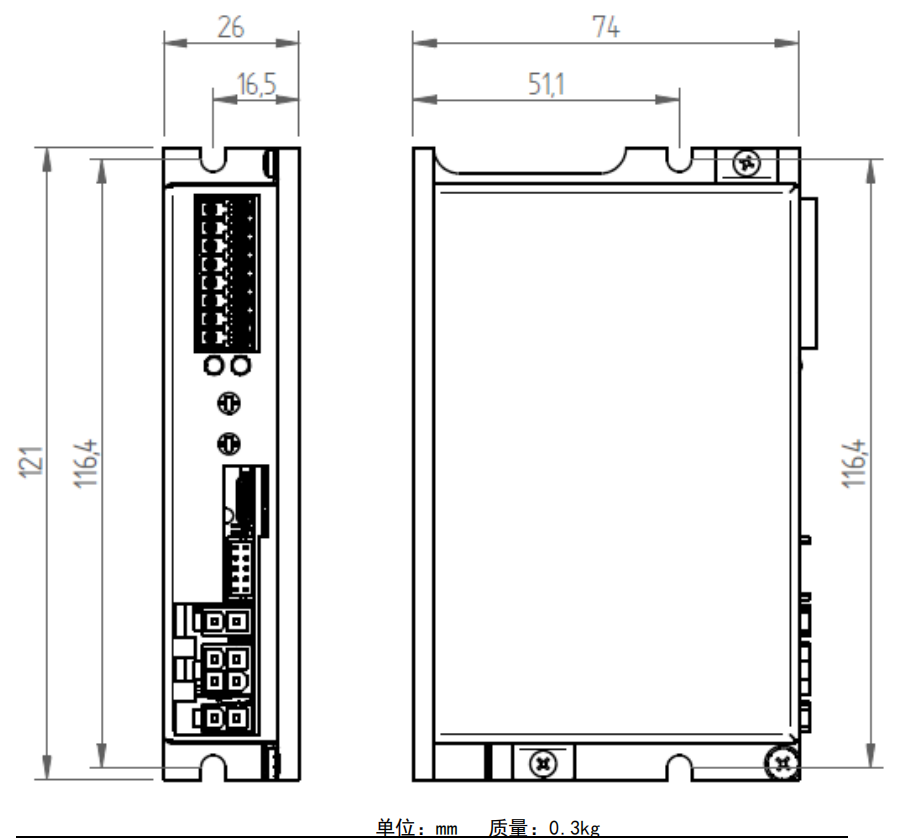

机械尺寸

Download area for EEDC-06-80U

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

强适配性

EEDC-06-80U已同如下品牌上位机（包括但不限于）搭配应用
