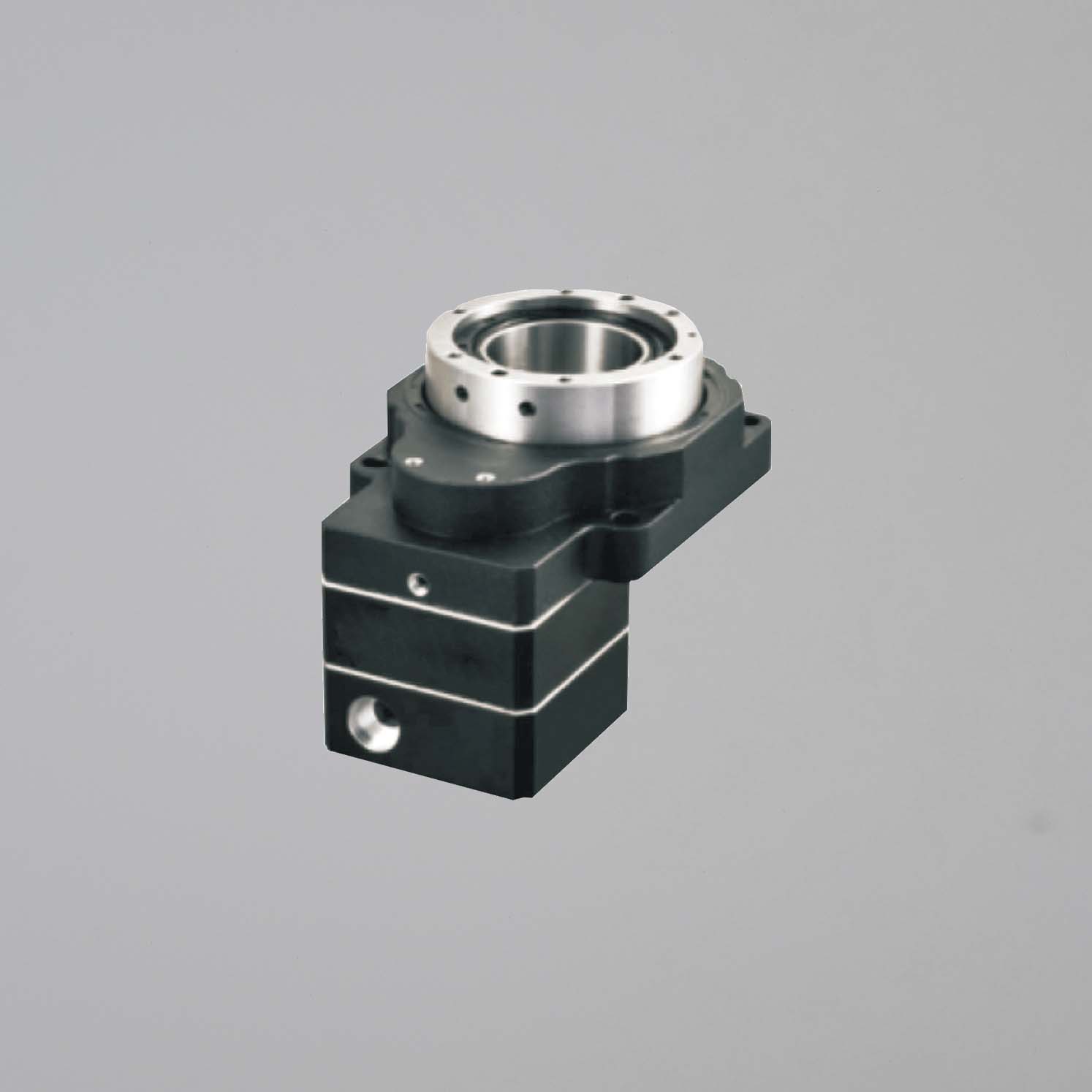

ERG60-5-□

盘面尺寸	60 [mm]
输出平台支撑	交叉滚珠轴承
速比	5比
移动角度	350 [°] 任意
适配电机	Ever42步进/100W伺服
额定输出扭矩	5 [Nm]
最大输出转速	120 [rpm]
定位精度	≤3 [arc-min]
重复定位精度	≤15 [arc-sec]
容许轴向负载	250 [N]
容许径向负载	125 [N]
润滑	合成润滑脂
使用寿命	20000 [h]
使用环境温度	-20 — 70 [℃]
防护等级	IP40
噪音值	≤63 [dB]
安装方式	任意
质量	0.5 [kg]

命名规则

Download area for ERG60-5-□

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

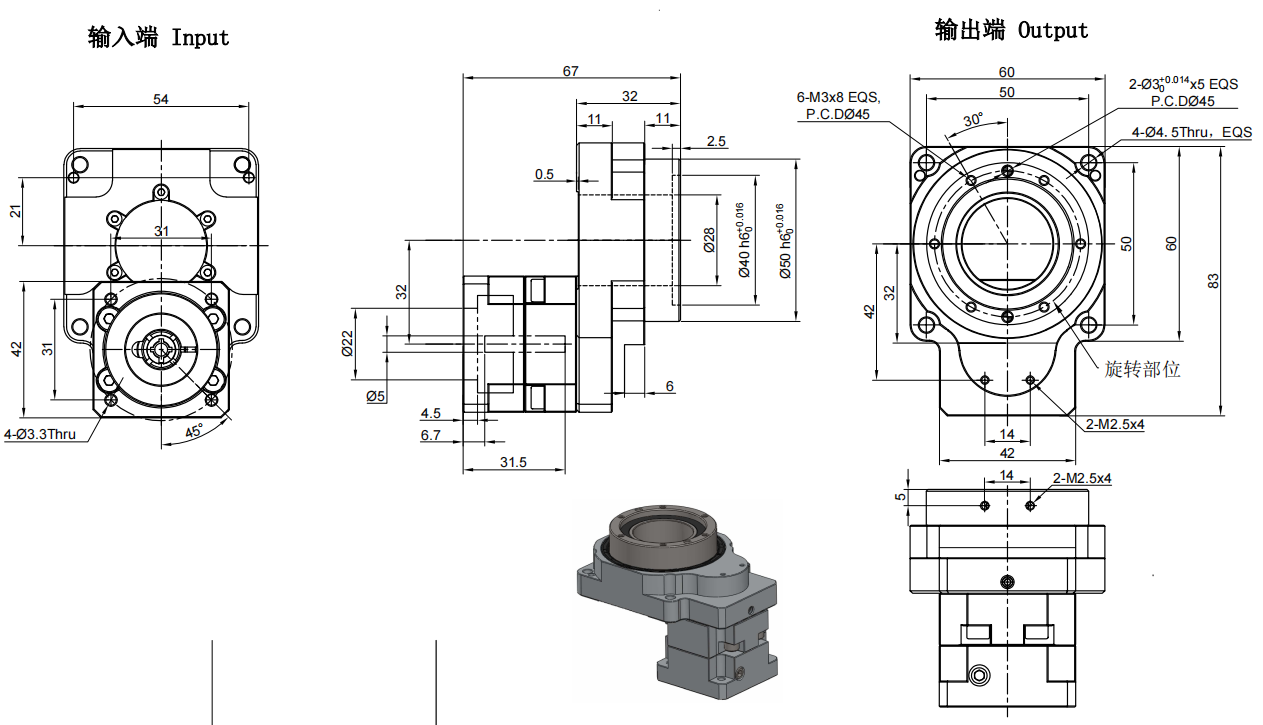

机械尺寸

订货信息
ERG50-5-V1	ERG60-5-T1
ERG60-5-V2
