ESM08系列

法兰尺寸	20 [mm]
步矩角	1.8 [°]
编码器类型	可选增量式
编码器分辨率	可选1000ppr
额定电压	5.4 [Volt]
额定电流	0.6 [A/ph]
相电阻	9.0 [Ohm] ± 15 [%]
相电感	3.0 [mH] ± 20 [%]
重复精度	±0.005 [mm]
出线方式	电机传感器一体出线
运行环境温度	-20 [°C] ~ +50 [°C]
温升	80 [K]
运行环境湿度	15 [%] ~ 90 [%]
马达长度	38 [mm]
绝缘电阻	100 [Mohm] min.
绝缘耐压	500 [VAC 1 Minute]
绝缘等级	Class B, 130°C
防护等级	IP20
尺寸	22 [mm] x 31 [mm]
导程	见选型 [mm]
步长	见选型[mm/步]
推力	见选型[N]
质量	0.4 [Kg.]

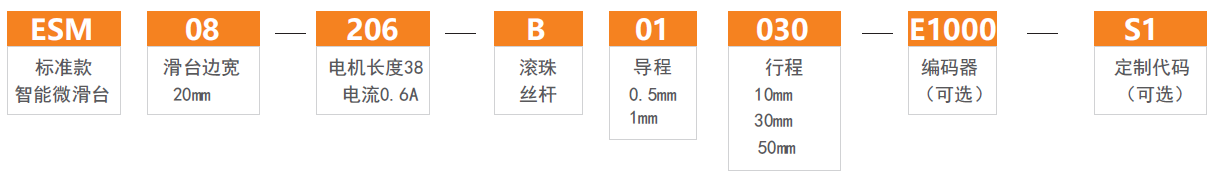

命名规则

Download area for ESM08系列

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

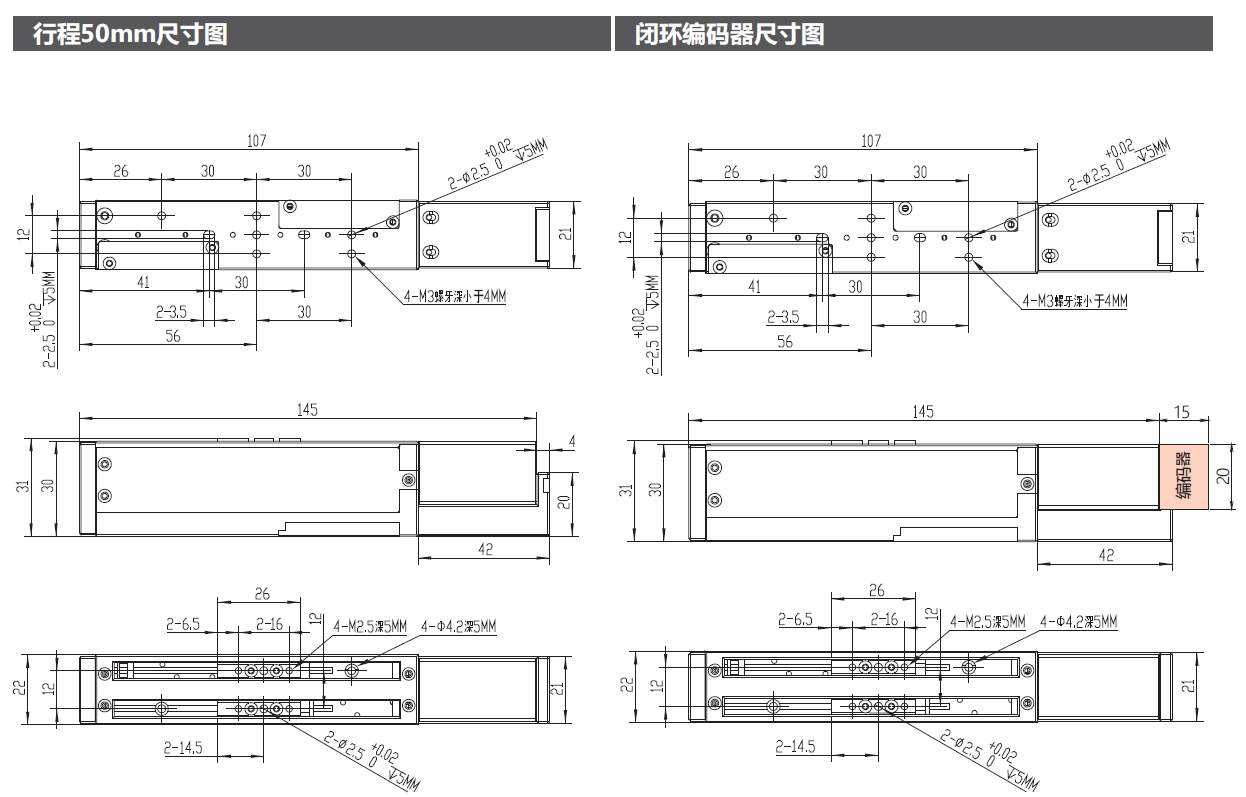

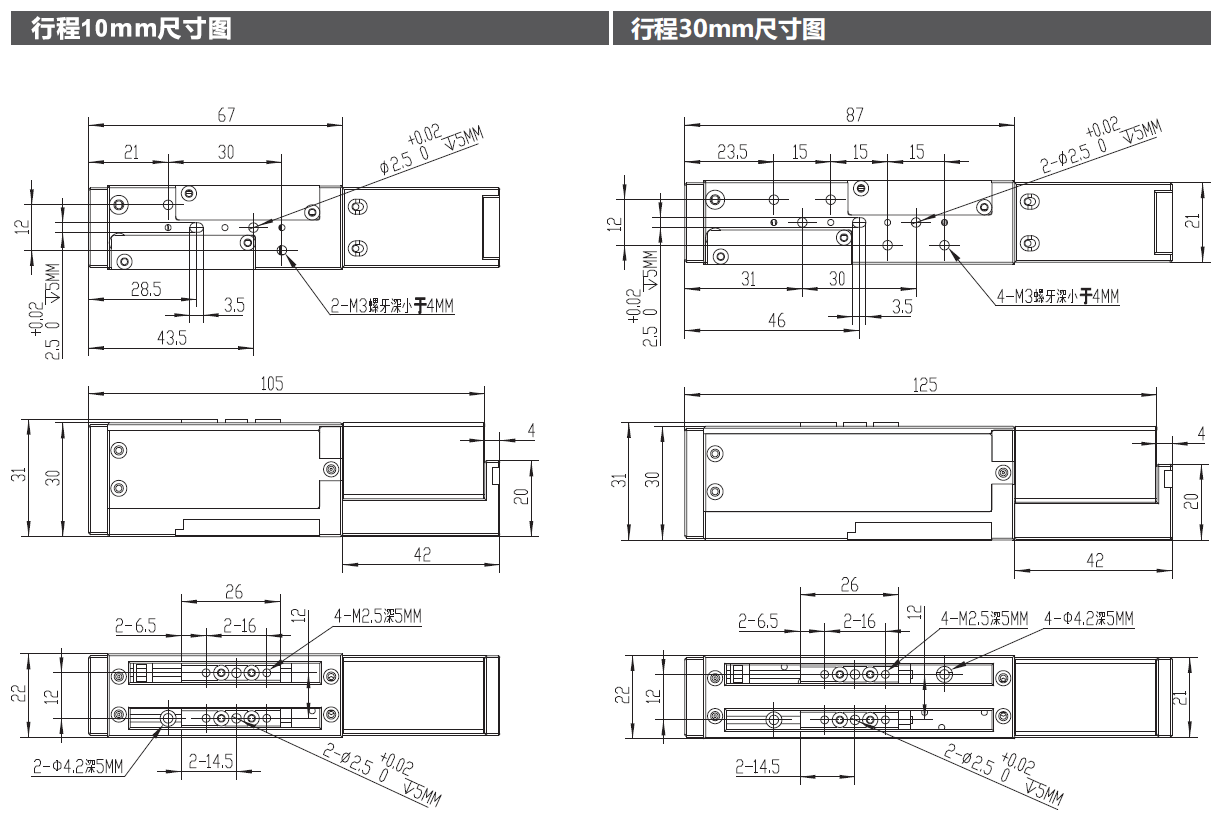

机械尺寸

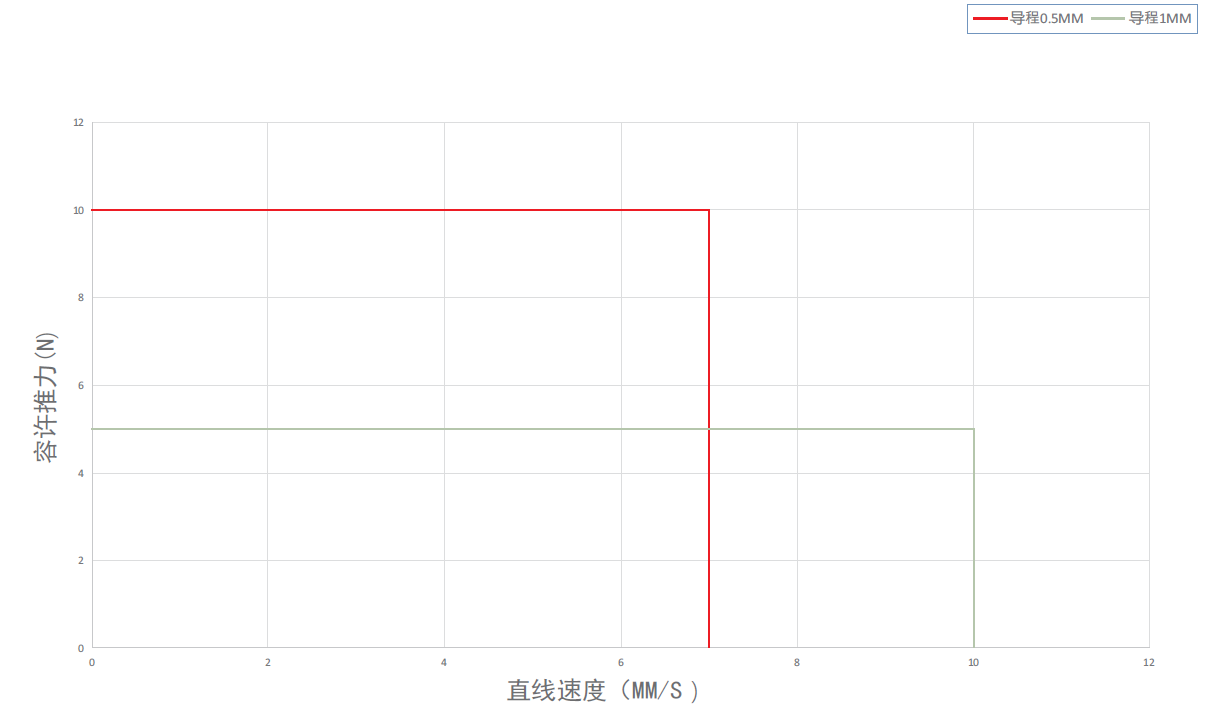

推力曲线
