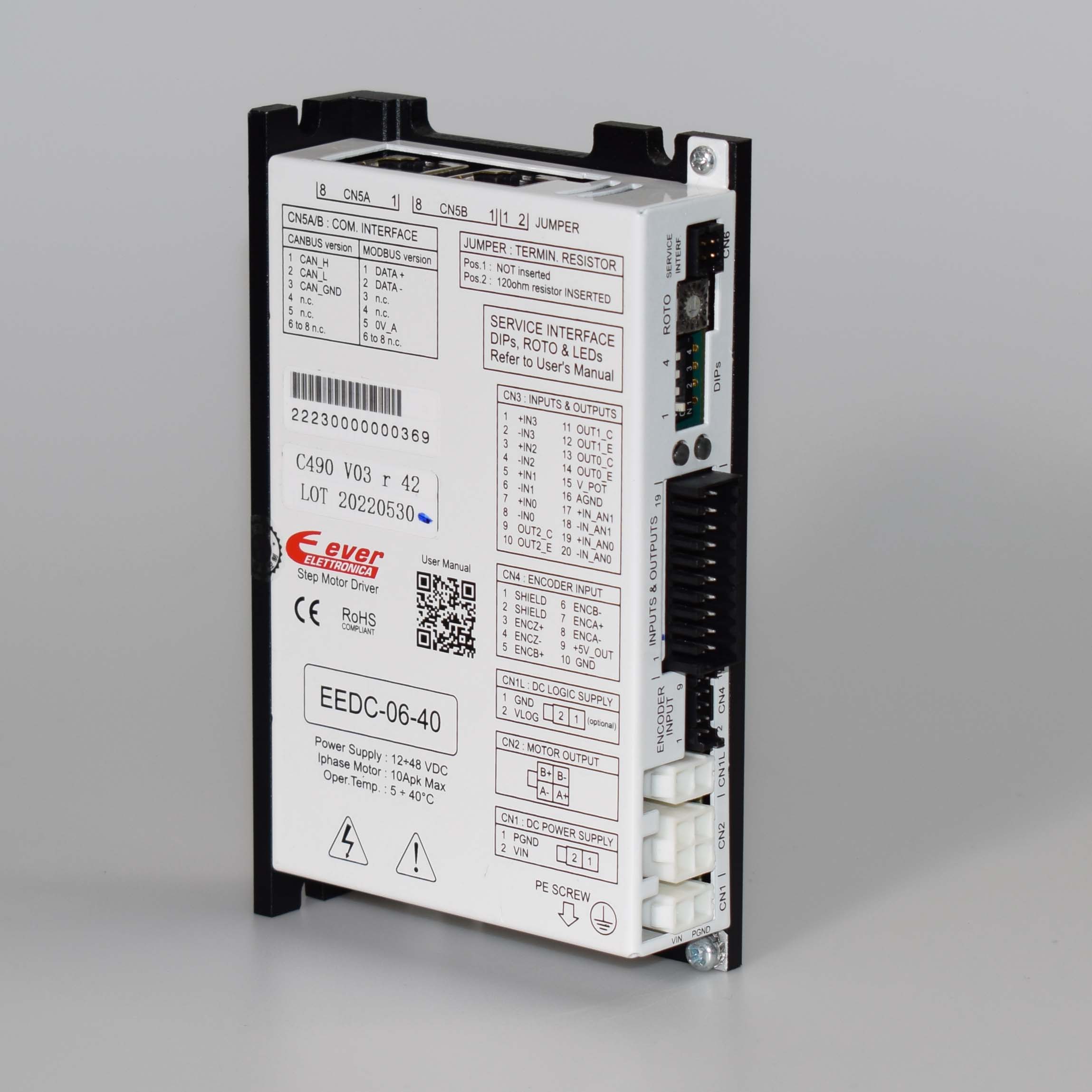

EEDC-06-40

控制模式	Modbus RTU
轴数	一拖一odbus
电源电压	12-48 [VDC]
输出电流	最大6 [A]
调试接口	Ever专用调试SCI编程接口/modbusRTU
数字输入	4 [光电耦合]
数字输出	3 [光电耦合]
编码器反馈	有
适配电机	20-86尺寸开闭环通用
环境温度	5-40 [℃]
环境湿度	5%RH-85%RH，无结露
IP等级	IP20
产品尺寸	123.2 x 74 x 26（无连接器）[mm]
保护	过电流、过电压、过热、短路、丢步
认证	CE，RoHS
重量	0.30 [kg]
相数	2 [相]

机械尺寸

Download area for EEDC-06-40

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.
