EPDO-04-F01

控制模式	IO信号速度控制
输入电压	15-24 [VDC]
输出电流	1.0-4.5 [A]
控制信号	5-24 [VDC]
数字量输入	3
数字量输出	1
编码器反馈	无
运行温度	0-40 [°C]
IP等级	IP20
最大可选速度	10 [RPS]
适配电机	57&60步进电机
温度范围	20%RH-90%RH，无结露
认证	CE RoHS
重量	0.30 [kg]
相数	2 [相]

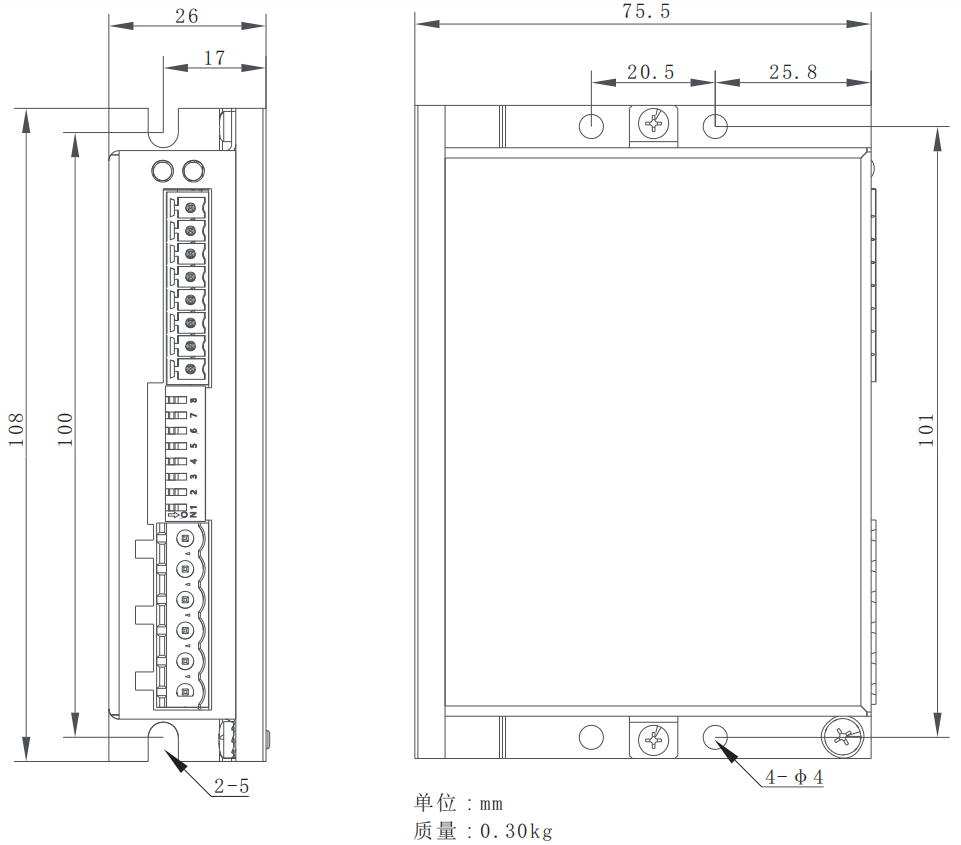

机械尺寸

Download area for EPDO-04-F01

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

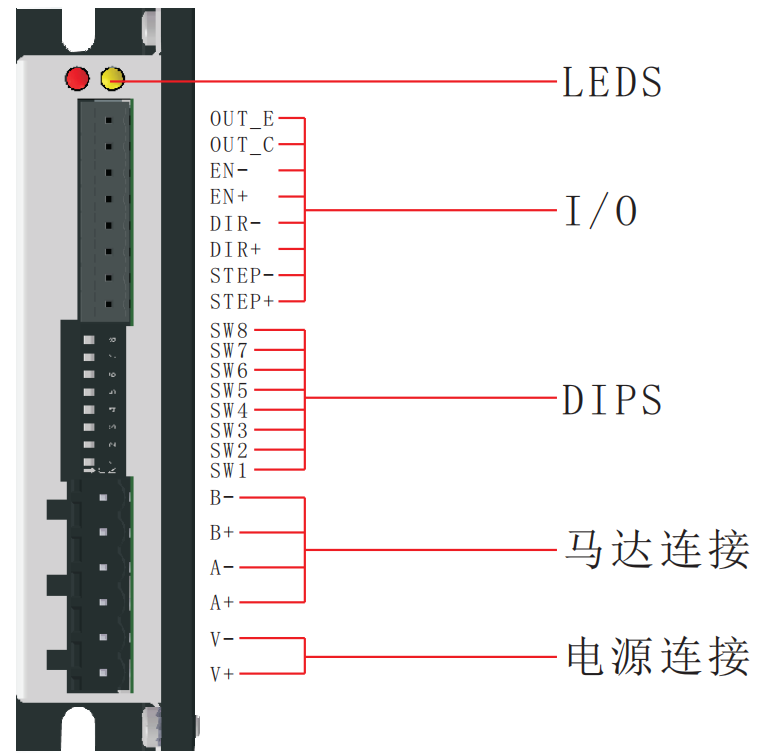

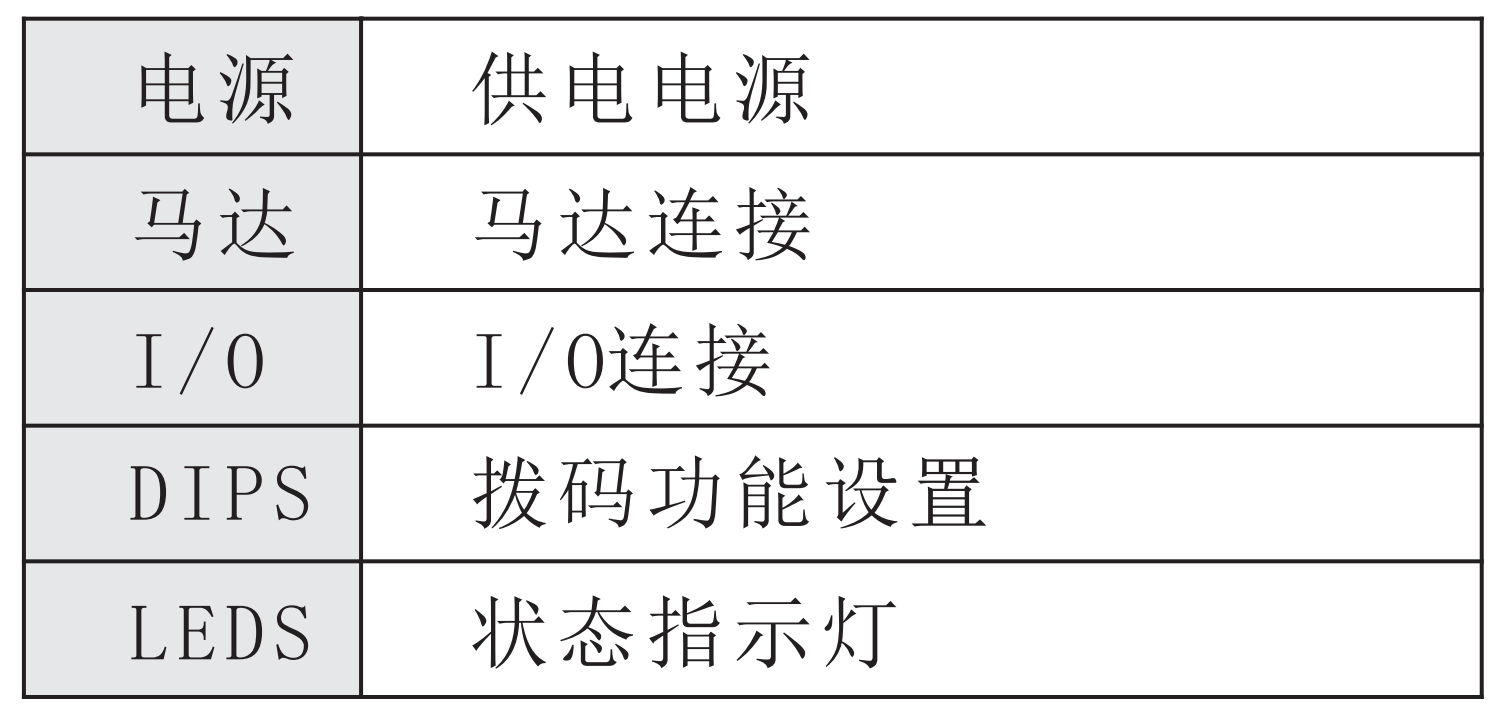

连接与运行

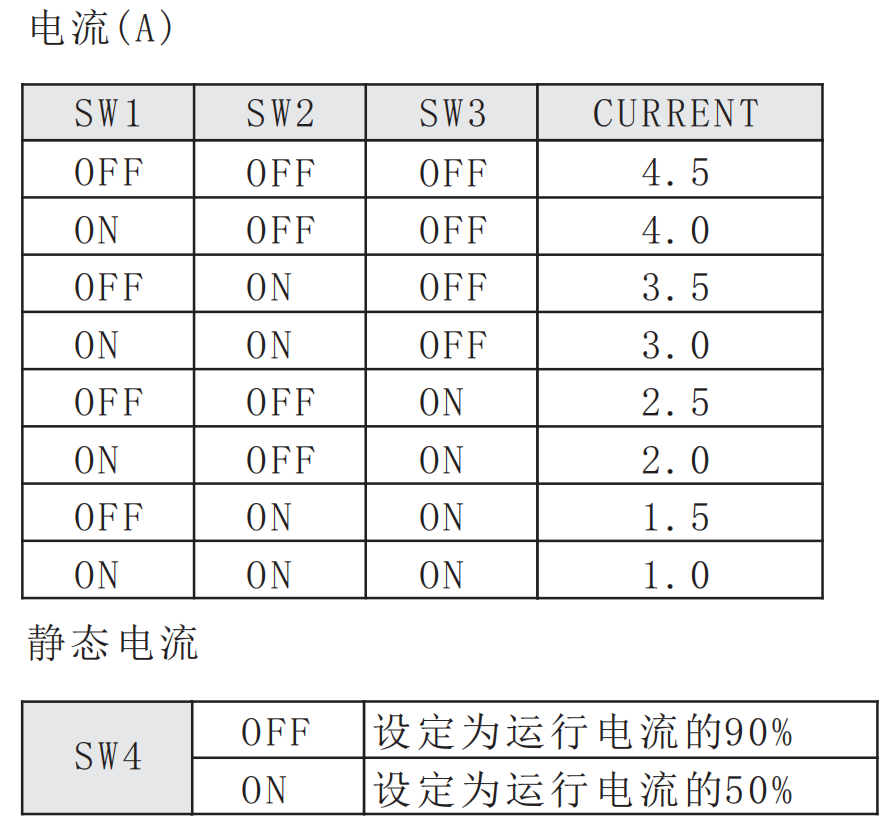

电流拨码

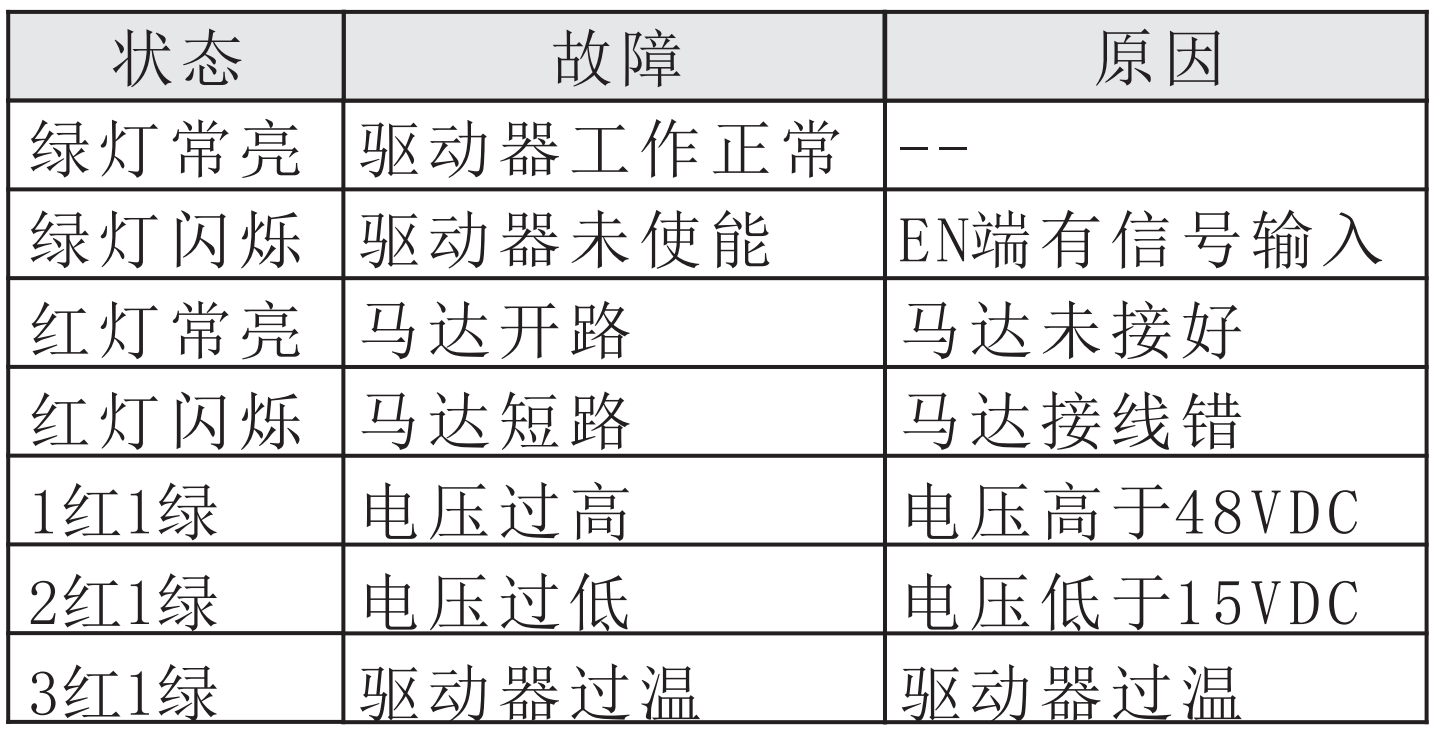

状态指示灯
