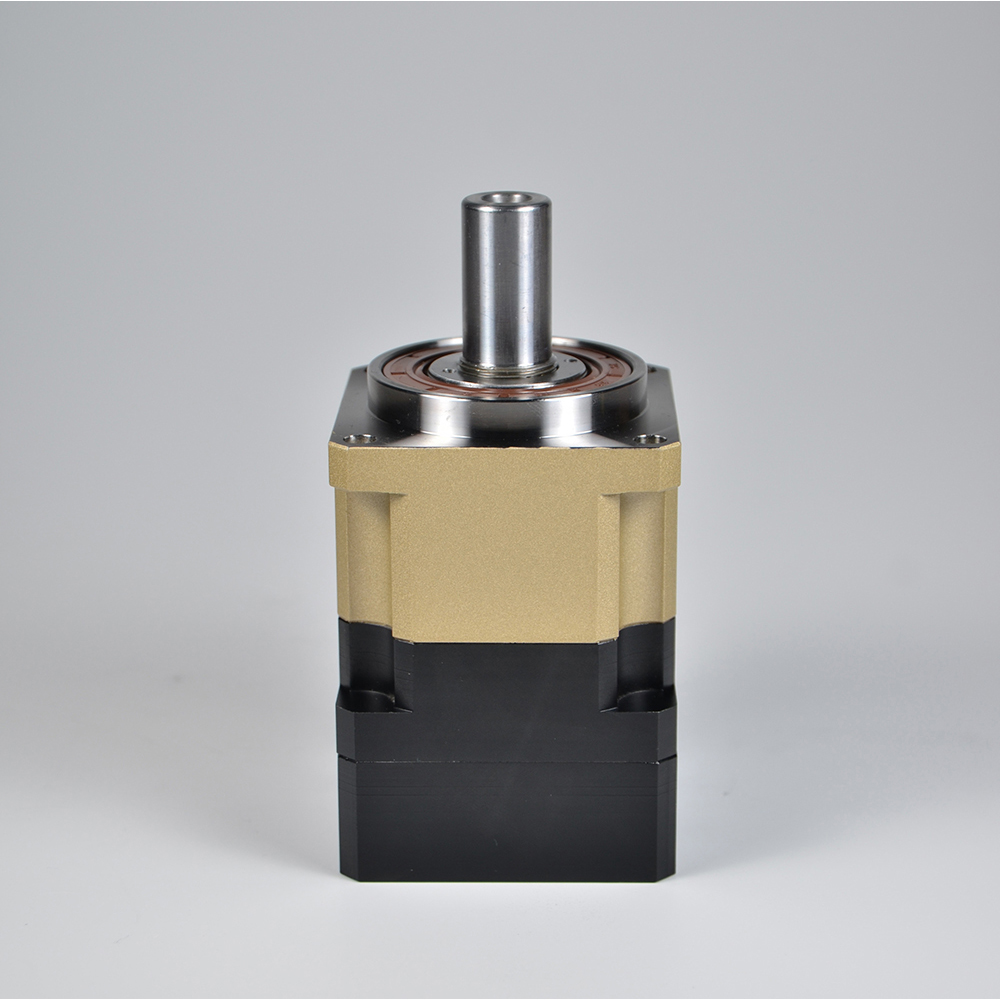

PNF120-L1-□

类型	斜齿法兰型
法兰尺寸	120 x 120 x 131.5 [mm]
工作温度	-20-80 [℃]
湿度范围	20%[RH]-90%[RH]
适配电机	1000W伺服
额定输出扭矩	Nm
最大输出扭矩	2倍额定转矩
平均使用寿命	20000 [H]
满载传动效率	≥97%
普通回程间隙	≤5 [arcmin]
IP等级	IP65
噪音值	≤65 [dB]
重量	7.8 [kg]

命名规则

Download area for PNF120-L1-□

技术展示

SHARE THIS PAGE

PROFINET

PROFINET ProfiNET, born to be the heir of Profibus, it based over Ethernet and its main aims are the project and plant commissioning costs reduction through an easy integration between the automation Ethernet-based devices and the Siemens devices.
EtherCAT

EtherCAT EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

机械尺寸


技术参数
